Introduction

The Scan-IT to Office App is available for mobile devices (smartphones and tablets) running Android or iOS. To use this App, you also need to install the desired Scan-IT to Office Add-Ins or Scan-IT to Office Tools on your desktop computer.

Terminology

A short explanation of the terms used in this manual:

  • App
    Denotes the Scan-IT to Office App that is installed on your mobile device.
  • Add-In
    Refers to the Scan-IT to Office Add-Ins. These Add-Ins are optimized extensions for Microsoft Word, Microsoft Excel, Google Chrome and Google Sheets to ensure seamless data collection with documents, spreadsheets and browser applications. Add-Ins are usually installed from within their hosting applications (e.g. via Microsoft AppSource or Chrome Webstore).
  • Target
    Denotes the target document (e.g. a Microsoft Excel sheet) or target system (e.g. a desktop computer) receiving data collected with the Scan-IT to Office App.
  • Tool
    Denotes the Scan-IT to Office Tools, these are auxiliary applications which are installed directly on the target system. The Scan-IT to Office Tools may forward collected data to any Windows/Mac application (utilizing the Scan-IT to Office Smart Keyboard Wedge) or store this data immediately in a database using ODBC (Scan-IT to Office Smart Database Connector).

Download & Installation

The Scan-IT to Office app can be tested for free. The free version transmits demo data in irregular intervals, for unlimited use we ask you to purchase a subscription. Download the Scan-IT to Office App using the links below:

In addition to the Scan-IT to Office App you need to install at least one instance of Scan-IT to Office Add-Ins or Scan-IT to Office Tools on your macOS or Windows desktop computer. Depending on the type of the Add-In/Tool this installation is either done on operating system level or from within the target application:

After both App and Add-In/Tool were installed you need to pair them: If you experience any problems, please check out the Known Limitations, the Scan-IT to Office FAQ or simple get in touch with us.

User Interface

Scan-IT to Office - Connection Manager

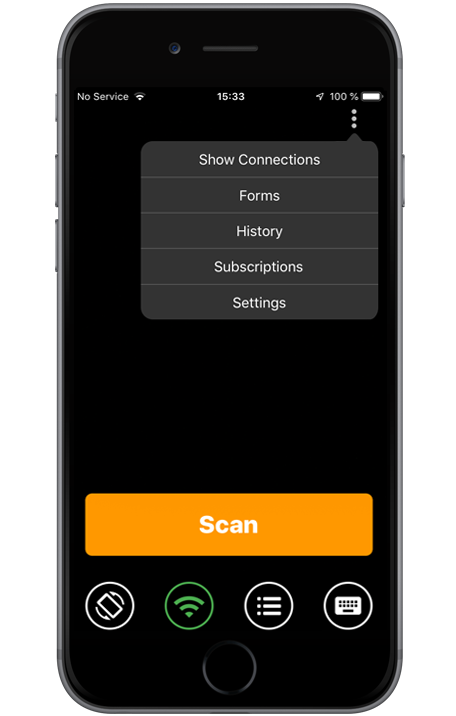

Menu

The main menu ( ) shows the following entries:
  • Connections
    Shows the paired targets and their states - e.g. online, paused, offline.
  • Forms
    Select a predefined input form or use the built-in form editor to create or share a custom data entry form.
  • History
    Shows a list with the recently captured data.
  • Subscriptions
    Purchase and manage subscriptions.
  • Settings
    Adjust a number of options for supported barcode types, character sets, camera scanner preferences, history behavior, etc.

Toolbar

Selection Icon

Rotation Lock
The App can be used in portrait or landscape orientation. Lock the desired orientation by tapping on this button.

Selection Icon

Connection State
Shows the current connection state in the respective color (see next point for details).

Selection Icon

Forms
Click this button to select the desired data entry form for data collection.

Selection Icon

Manual Input
Tap this icon to enter barcode data manually.

Connection States

Connection Icon Green

A green icon indicates, your target application is ready to receive data.

Connection Icon Yellow

If a yellow icon is displayed, make sure your app is paired with an add-in, the add-in is currently active and your device is not paused in this add-in.

Connection Icon Red

A red icon indicates a connection error, please make sure your smartphone or tablet has internet access.

If you have connection problems, please check out the Scan-IT to Office FAQ or contact our support team!

Connections

Scan-IT to Office - Connection Manager

The App's main menu entry Connections lists all currently paired targets along with their connection state by using the following colors:

  • green = online
  • yellow = paused
  • gray = offline

If your connection is unencrypted, the following status icon is displayed next to the connection name:

Inactive Encryption

Unencrypted connection

To encrypt connection, enable end-to-end encryption in the corresponding target (see Add-In/Tools Manual). If you are using the Scan-IT to Office Tools, please make sure that you have installed the latest version.

Add Connection (Pair)

Scan-IT to Office - Connection Manager
Pairing connects the Scan-IT to Office App with the target application or target document on your desktop computer:
  • Mobile device: Open the main menu (), go to Connections and click the button Add Connection (see previous picture).
    The Add Connection screen comes up automatically when starting the App without established pairings.
  • Desktop computer: Open the installed Scan-IT to Office Add-In/Tool, which displays a QR code for initial pairing. If no QR code is shown, click Add Phone.
  • Mobile device: Select Scan QR-Code to scan the displayed pairing code (see picture).

That's all, both App and Add-In/Tool indicate a successful pairing with a green icon or green state indicator. You are now ready to start collecting data with your mobile device; data is automatically forwarded in real-time to all connected and active targets.

Advanced

  • If you want to collect data with multiple devices for a single target document, add another phone by clicking Add Phone in Add-In/Tool.
  • If you want to forward collected data to multiple targets simultaneously, connect the App with additional Add-In/Tool instances. For details, see Scan-IT to Office FAQ.

Data Entry Forms

Scan-IT to Office - Connection Manager
The Scan-IT to Office App provides an optimized function for sole barcode scanning as well as a number of predefined standard input forms for common field data acquisition tasks.
  • With the built-in form editor (Create New Form) users are able to create custom input forms using any combination of supported input fields.
  • Share input forms with others by tapping Form Sharing. To import a shared custom form into the App simply tap on the received file.
  • To cover even more advanced input form requirements (e.g. with branding or additional functionality for product lookups) input forms can be developed in HTML 5. Please contact us for specific requirements!

Field Types

The form editor currently provides the following field types:

  • Barcode scan
  • Text (OCR)
  • Number (e.g. quantity)
  • List box (single and multiple selection)
  • Date
  • Time
  • Checkbox
  • Image (from camera or gallery)
  • Location data (GPS)
  • Date & time
  • Static text
  • Stopwatch

Text Recognition (OCR)

Scan-IT to Office - Text Recognition

Text can be typed manually or inserted using the text recognition function.

  • To start text recognition, just tap on the camera symbol next to the text field.
  • Take pictures with your camera or add them from your photo library (adding from library is available on iOS only).
  • The integrated text scanner converts Latin text (or characters) on images into editable text.
  • Select the detected text by dragging your finger over it and tap the Confirm button.
  • The selected text is automatically inserted into the text field.

The following buttons are displayed in the text scan view:

Cancel Selection Icon

Cancel Selection
Tap this button to clear all text selections.

Select All Icon

Select All
Tap this button to select all recognized text blocks.

Select Image

Select/Take Image
Tap this button to select or take an image for text recognition.

Confirm Icon

Confirm
Tap this button to insert the selected text into the text field.

Please note: Recognition of Latin-script, typewritten text is not 100% accurate - even where clear imaging is available.

History

The App buffers captured data in a history of user-adjustable size (see Settings). You can use the App when connected to the Internet (recommended) and when offline. Data captured while offline will be sent automatically to the paired targets when online again, the data collection order is preserved.

  • View
    Captured data is automatically stored in the history of the app. The history contains the list of the most recently collected data including information like transmission status, scan / send time or the received server status message (not available on all platforms).
  • Resend
    Resend individual data records or the complete history to connected targets.
  • Export
    Data may be exported as Excel or CSV files by tapping the button Form Sharing (not available on all platforms).
  • Delete
    Individual records or the complete history can be deleted.

Settings

Please note that the availability of options may differ between iOS and Android.

License State

Shows the current license state of the App. Licenses are available as paid subscriptions (auto-renewing) on Google Play or App Store and can be changed, cancelled or renewed anytime by the user himself. Bulk-licenses are available directly from TEC-IT (Google Play / App Store payments or accounts are not required for bulk licenses).

Forms

Select, manage or create a custom data entry form using the built-in form editor.

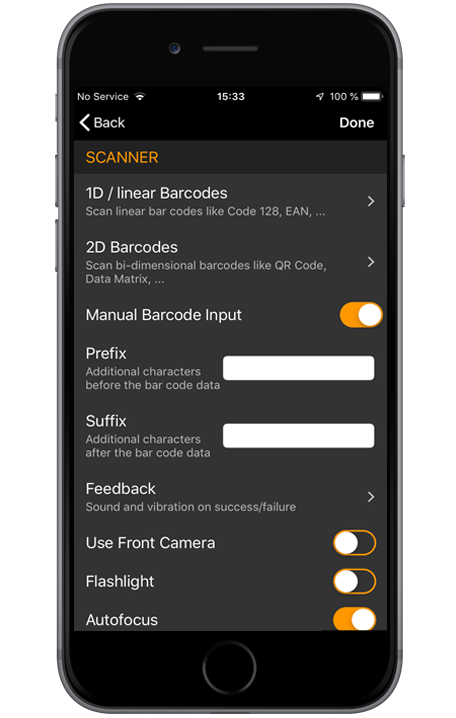

Scanner Configuration

Scan-IT to Office - Settings

Adjust barcode scanner relevant options like outlined below. The Android version is prepared for future support of additional built-in hardware scanners. In the current version this configuration is without effect on most devices.

  • Recognized 1D / linear barcode symbologies
  • Recognized 2D barcodes
  • Barcode character set
  • Remove symbology identifier
  • Flashlight
  • Silent scan
  • Autofocus mode
  • Permanent autofocus
  • Autofocus delay
  • Batch scanning
  • Pause between scans
  • Prefix
  • Suffix

History

Adjust options relevant for the history:

  • Size
    Number of entries stored in the history
  • Clear
    Deletes all entries in the history
  • Automatically resend
    When activated unsent data is retransmitted automatically when online
  • Resend interval
    Time span between resend retries
  • Server confirmation required
    Deactivate this option if a single data entry is transmitted repeatedly to the target.

Connection

Adjusts the friendly device name (displayed to the user in the paired Add-In/Tools) and manage connected targets. You may also select the server settings used for communication. For more details see Show Connections.

Behavior

Offers options to adjust auxiliary App functionality.

  • Manual barcode input
    When enabled, the App offers the possibility to enter barcode data manually instead of scanning
  • Feedback
    Several audible and haptic feedback options
  • Battery saver
    Adjusts whether the display should be switched off when inactive

Lock Configuration

Scan-IT to Office - Lock Configuration

Enable this function and enter a password to protect your configuration. This is a very valuable feature, if several employees use the app with the same settings (e.g. for company-wide data collection). Once enabled, the following areas can be locked individually:

  • Settings
    If locked, a password is needed to open the Settings.
  • Form Editor
    If locked, a password is needed to create/edit/delete forms.
  • Form Selection
    If locked, a password is needed to change the selected form.
  • Connections
    If locked, a password is needed to connect new or disconnect existing targets.

About

Offers links to various user manuals, social media and YouTube videos, displays terms and conditions of use and provides information about the App version.

Known Limitations

Due to technical reasons, not all features are available in all target applications, the following limitations may occur:

Limitations when using Microsoft Excel 2013:

  • Collected data cannot be split into multiple columns, instead it is inserted into a single cell, separated by spaces (works with Microsoft Office 2016 or later).
  • The selected cell does not change after inserting data. All data is inserted into the same cell (works with Microsoft Office 2016 or later, if all required updates are installed).

Inserting images is only possible with the following applications:

  • Microsoft Word/Excel for Windows (2016 or later)
  • Microsoft Word/Excel for Mac (Version 15.20 or later)
  • Microsoft Word Online
  • Google Sheets

The option Resize cells to fit image size is only supported in the following applications:

  • Microsoft Excel for Windows (Version 1601 or later)
  • Microsoft Excel for Mac (Version 15.22 or later)

Limitations when using Text Recognition (OCR) on Android:

  • Text recognition is supported from Android 5.0 (Lollipop) onward and requires installed Google Play services.
For further information, check out the Scan-IT to Office FAQ.

Multi-User & Multi-Target

  • Multiple mobile devices can be used to capture data for a single target simultaneously. To do this, pair each mobile device running the Scan-IT to Office App with the Scan-IT to Office Add-In/Tool associated with your target.
  • A single mobile device may send the collected data to multiple targets at the same time. To do this, pair the Scan-IT to Office App with multiple Scan-IT to Office Add-Ins/Tools.

Purchasing & Subscriptions

  • The Scan-IT to Office App can be downloaded and tested as a free demo version from Google Play and App Store.
  • Without a subscription, captured data is replaced by a demo text in random intervals and/or a notification will be displayed.
  • Subscriptions can be purchased directly via the app menu () under Buy Subscription.
  • Subscriptions are auto-renewing by default and can be cancelled, paused or reactivated anytime by the user. Please check out this FAQ entry for details: Cancel, Pause or Change Subscriptions.
  • For users with volume license requirements for 10 or more devices, TEC-IT offers a bulk-license version of the App.
  • The available Scan-IT to Office Add-Ins and Scan-IT to Office Tools can be downloaded, installed and used for free (see Download & Installation).

Privacy & Security

Scan-IT to Office was designed with privacy and security in mind:

  • The Scan-IT to Office solution uses Microsoft Azure cloud services, the servers are hosted in Texas/USA.
  • Communication is secured using Transport Layer Security (TLS).
  • By default, mobile collected data is transmitted using end-to-end encryption (see below).
  • The servers do not store data permanently, data collected with the App is discarded immediately after processing it.
  • Scan-IT to Office works without the use of personal account data (Note: If Google Drive is used as the target application, the mobile App uses the Google account selected by the user to log in).
  • Configuration data is stored exclusively in the App (on the mobile device) or in the private storage of the Scan-it to Office Add-In/Tool (on your desktop computer).
  • For pairing purposes, an anonymized mobile device ID is exchanged with the Scan-IT to Office Add-In/Tool. No user or account data is used.
  • To identify connected Add-Ins/Tools in the App, a randomly generated Add-In/Tool ID and the Add-In/Tool name are exchanged with the Scan-IT to Office App. No user or account data is used.
  • The camera permission is required for scanning barcodes with the phone’s camera.
  • The location permission is required to determine the location of the mobile device. This permission needs only to be granted if input forms querying the geographic location are used.
  • The storage permission is required for reading/writing a configuration file from the phone’s storage (the settings of the App can be exported/imported to/from such a file). For the bulk-license version this permission is also used for loading the license file (containing the license keys for bulk-licensing).
  • The phone permission is required by the bulk-license version of the App for querying the Android serial number or the IMEI (a single license is bound to a device by using one of these IDs). Note: the version available on Google Play does not support bulk-licensing. Thus the "phone" permission is not required by the Google Play version of the App.
  • Please check out the general Privacy Policy for Mobile Apps. In case of questions contact us.

End-to-End Encryption

All connections are protected with end-to-end encryption by default. The encryption state is indicated by a connection state symbol in the App's toolbar:

Encryption

End-to-end encryption is activated (this is the default). The connection icon shows an additional small lock symbol.

Selection Icon

If a green connection icon without the small lock symbol is displayed, your device is sending data without end-to-end encryption. This happens if end-to-end encryption was manually disabled in at least one of your connected targets or if at least one target doesn't support end-to-end encryption (see Connections).

Please note: End-to-end encryption is supported in the Scan-IT to Office App version 4.0 and above.

Encryption Keys Changed

You may see an Encryption keys changed dialog in the app when the encryption keys of a connected target have been changed. Please verify that this change was made by you or by the administrator of the target in question.


Feedback and Suggestions

  • TEC-IT appreciates your feedback and suggestions. Just let us know what you think and contact us.
