With the barcode software component TBarCode SDK you simply create all barcodes with Microsoft® Office. The integration in office applications like Microsoft Excel®, Word and Access™ is done with a few mouse clicks. If required, advanced bar-coding macros can be implemented with VBA programming.
TBarCode SDK includes a Barcode ActiveX Control that can be used easily in Microsoft Office applications:
Embedding the Barcode ActiveX Control into Microsoft Office programs requires no programming knowledge. Inserting a barcode into your document is done with a few mouse clicks. On demand VBA programming is possible without restrictions.
Barcodes generated by TBarCode SDK can be printed with all printers. The bar codes are generated via software in the highest possible output quality. No special printer extensions or barcode fonts are required!
Check out the following examples on how to insert bar codes into your Microsoft Office application.
You can insert the Barcode ActiveX Control from the SDK through the Developer tab (Legacy Tools ➔ More Controls ➔ TBarCode11).

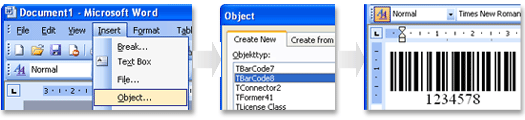

Simply choose Insert Object from the menu and select the TBarCode ActiveX® Control. A bar code appears instantly in your Microsoft Word document. In Word 2007 click the Insert Controls button in the Developer ribbon.
You can insert the Barcode ActiveX Control from the SDK through the Developer tab (Insert ➔ More Controls ➔ TBarCode11).

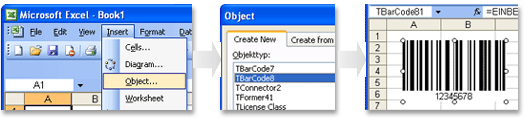

Choose Insert Object from the menu and select TBarCode SDK (ActiveX® Control element). A bar code appears instantly in your Microsoft Excel worksheet. In Excel 2007 click the Insert Controls button in the Developer ribbon.
Without a single line of program code you print bar codes with your own data! TBarCode SDK supports data binding of the bar code control to a specific cell in your work sheet. Additionally you can input all characters to be encoded into TBarCode SDK directly.
Simply choose Insert Object from the menu and select TBarCode SDK (ActiveX® control element). A bar code appears instantly in your Microsoft Access Report. Any arbitrary field and any printout can be printed as barcode.
Without writing a line of program code you print bar codes with your own report data! TBarCode SDK supports data binding of the barcode control to your report data fields or form data fields. Additionally you can input all characters to be encoded into TBarCode SDK directly.
More information:
A simple right click on the bar code object opens the property pages, which show all bar code parameters in a clear overview.
Adjust all parameters like bar code type, font characteristics, module width (X dimension), check digit calculation (and many more) easily.
For each 2D symbology (e.g. PDF417, Data Matrix, QRCode, ...) there are extra configuration dialogs with specific bar code options.
Info Sheet (PDF)
Online Barcode Generator
For more information visit our TBarCode SDK Tutorial Channel!
